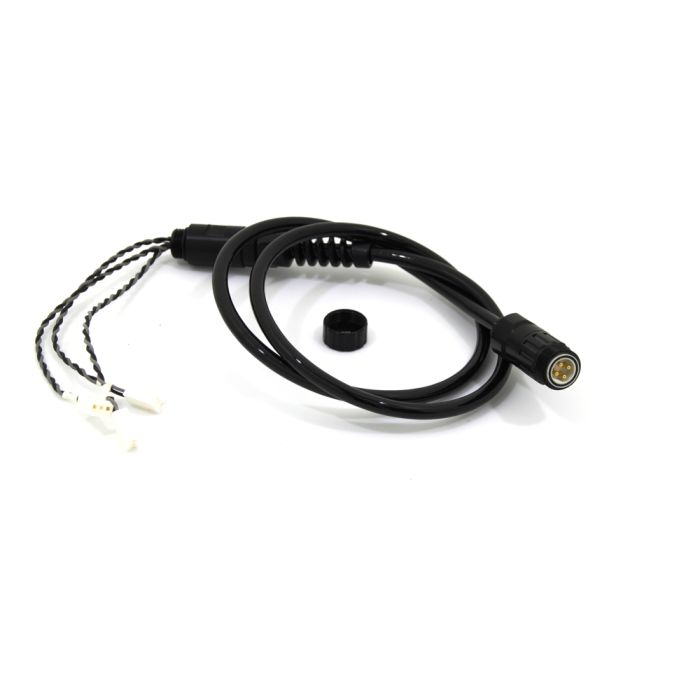

This cable is made to fit the Kiss sidewinder rebreather.
Divesoft connetor to 80cm long water blocked cable to PG7 gland and 15cm x3 molex sensor wires.
This cable has isolation electronics built into it, the isolation is used when this cable is being used with other PPo2 monitors plugged into the rebreather at the same time.
This cable makes it possible to monitor all 3 Sensors , and has built in isolation so if the cable is unplugged or cut it will not interfere with rebreather sensor readings.
The cable is made from 80cm water-blocked cable with all parts resin filled and the cable comes complete with Gold plated MOLEX connectors.
MOLEX SPLITTERS SOLD SEPARATELY (CLICK HERE)
The connecting cable for oxygen sensors enables the connection of up to three rebreather oxygen sensors through the Molex connectors. It comes in the standard length of 0.8 meter.
PG7 cable gland, gold connections, Built in Isolation.
You have to set sensor termination in your Freedom computer if you want to use it with the cable, please follow this procedure:
"Cell -> 10k" (default On) allows to disconnect terminators inside Freedom for sensors 1 and 2. When set to Off, sensors 1 and 2 should show full sensor voltage. "Cell -> 10k" affects only cells #1 and #2, this is why there is a "3rd sensor ratio" option to correct the cell #3.
3rd sensor ratio (default 2.00): It works as virtual amplifier for sensor 3. Allowed values are 1.00 - 3.00. You have to adjust this ratio so Freedom shows the voltage as you can measure with Freedom disconnected.
IMPORTANT: This setting is active if terminators are off ONLY !
When terminators are On, 3rd sensor works without this coefficient!
| SKU | DIVESOFT-SIDEKICK |
|---|
we try to hold stock of all products, but if showing out of stock there may be a few days wait while new stock arrives.
